Lab Meat Now Model V · Inverted microscope

Lab Meat Now · not the front page

Model V inverted microscope

For living cells in flasks and dishes. Built for people who want to look at muscle cultures without killing an animal to make the next burger. Designed in Germany, 2023. Sold by 2HEX GmbH under Lab Meat Now.

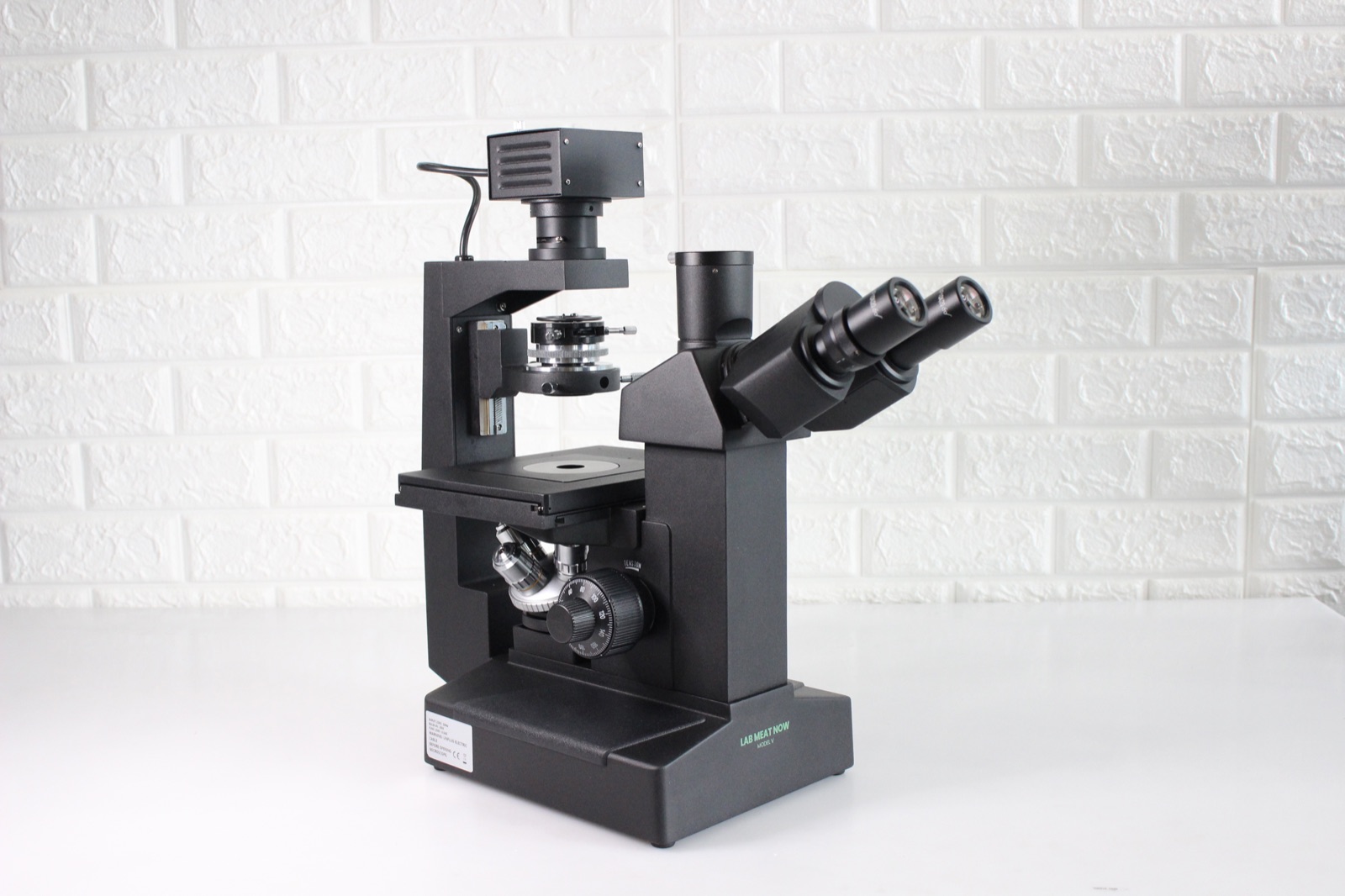

Lab Meat Now Model V, front view, matte black with green branding

Analog

Trinocular inverted biological microscope. Look through the eyepieces. Long working distance objectives so a flask actually fits.

$2,490 · 14 kg · shipping extra

Add analog Model V

Digital

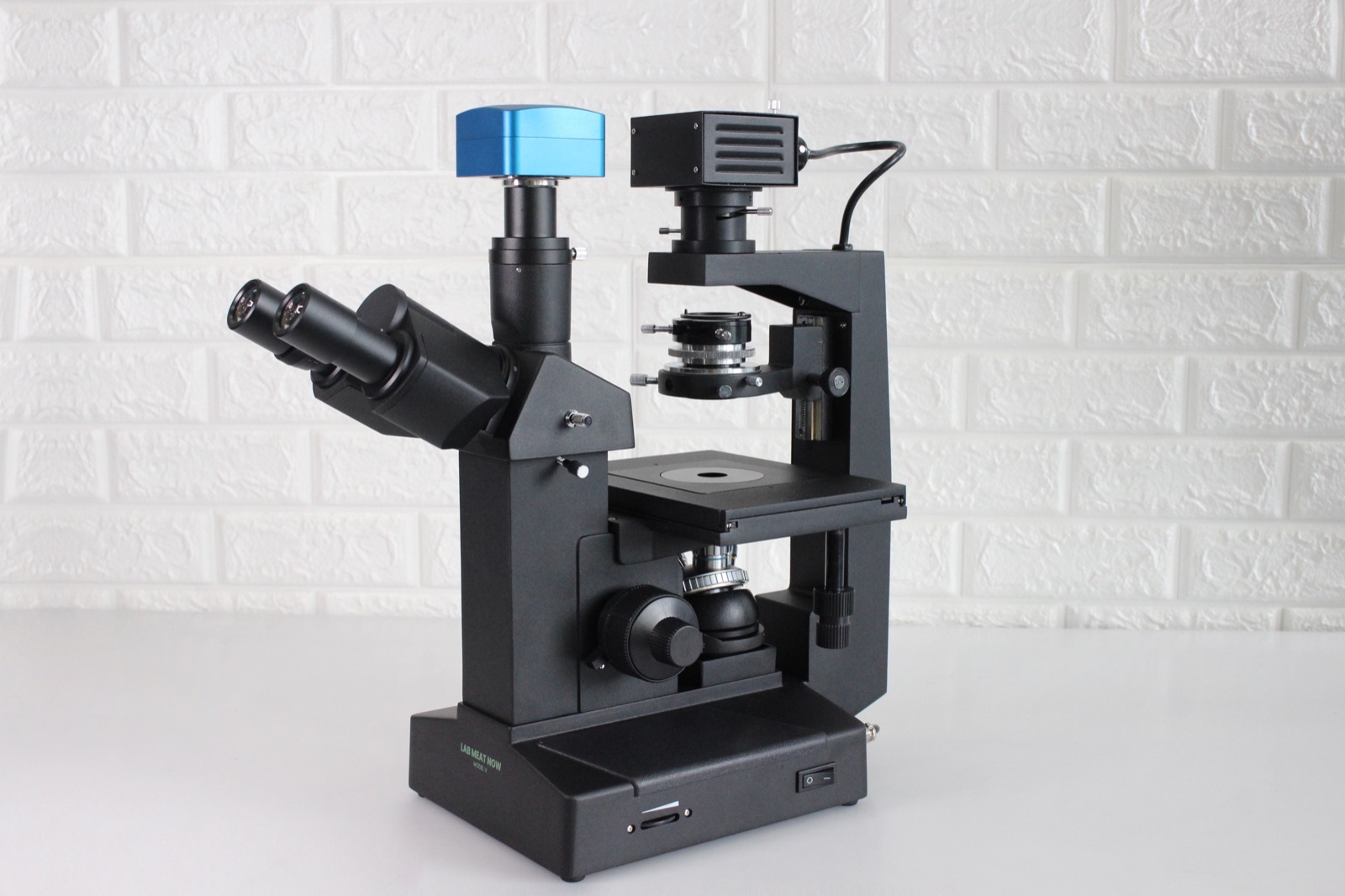

Same stand, plus the 12MP E3ISPM camera (IMX226, USB 3.0, 25 fps at 4000x3000, 50 fps at 2048x1080). Record growth. Share it.

$3,490 · 14 kg · shipping extra

Add digital Model V

What it is for

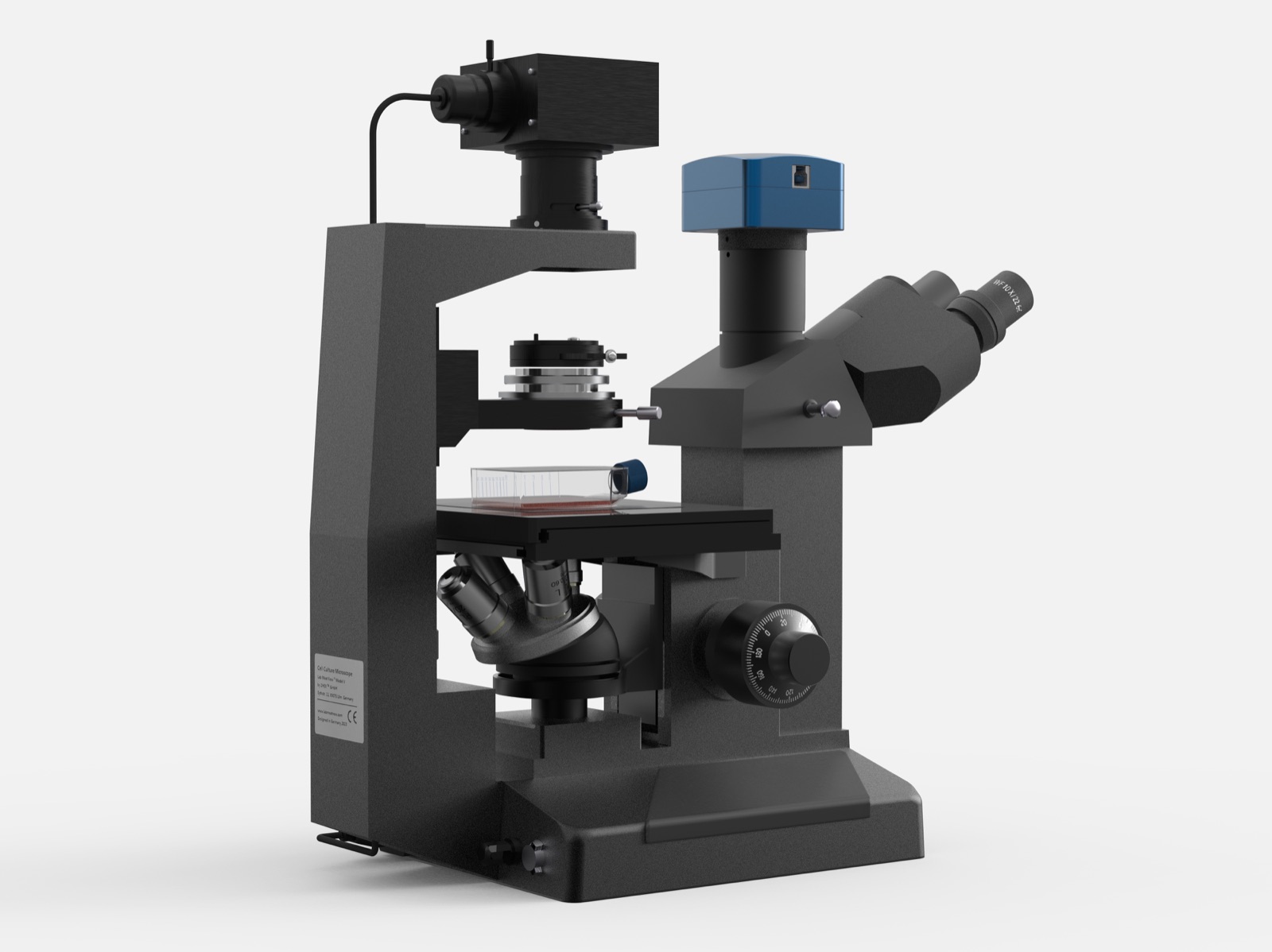

Transparent living specimens in culture bottles. Muscle cells, media tests, teaching, small lab starts. This is not a toy Amazon scope. It is the instrument we used when Lab Meat Now was still a table, a centrifuge, and a stubborn goal: a sausage that did not require a death.

Eyepieces	WF10x / 20 mm, wide field
Head	Trinocular, 30 degree incline, 100% light to camera
Magnification	100x to 400x
Objectives	Plan achromatic LWD PL L 10x/0.25, 25x/0.40, 40x/0.60, plus 10x phase contrast PHP
Focus	Coaxial coarse / fine, 2.0 µm fine division, tension and up-stop
Stage	Double layer mechanical 200 x 152 mm, travel 75 x 30 mm
Condenser	NA 0.4, rack and pinion, long working distance, phase plate
Light	6 V 20 W halogen, adjustable. Blue, green, frosted filters
Camera (digital)	E3ISPM 12000 KPA · 12 MP IMX226 1/1.7" · 1.85 µm pixels · 0.1 ms to 15 s exposure · USB 3.0 (USB 2 compatible)

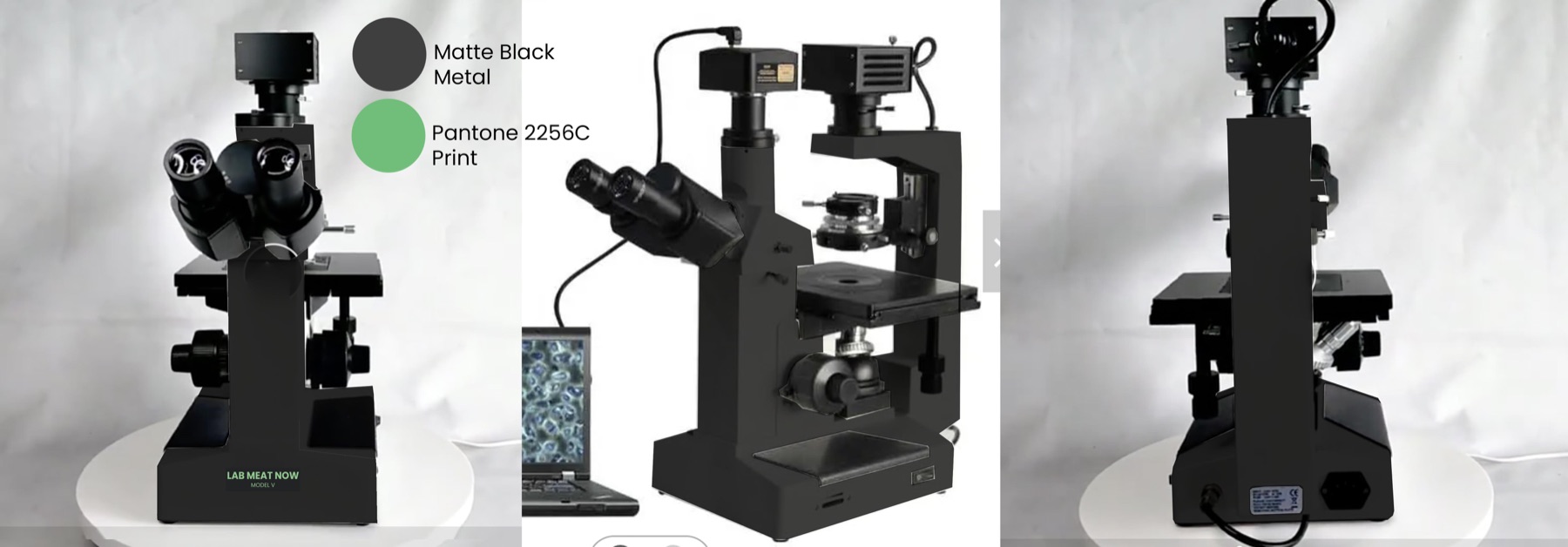

Body	Matte black metal, Lab Meat Now green print (Pantone 2256 C), Model V
Maker	2HEX GmbH, Eythstr. 11, 89075 Ulm, Germany

Questions on adapters, CE marking, or a custom color: niklas@listthe.com
